95% Alumina Magnetron Assembly Wear Resisting

Brand Name : CMC

Model Number : MS29

Certification : ISO9001, ISO14001, ISO45001, RoHS

Place of Origin : China

MOQ : 3000 Pieces

Price : USD1.5~2.85/piece

Payment Terms : D/P, T/T, Western Union

Supply Ability : 1,000,000 pieces per month

Delivery Time : 20 work days

Packaging Details : Package : Foam. Blister Bags, Carton

Material : Alumina

Color : White, Pink

Application : Magnetron

Size : Size Customized

Usage : Wear-resisting Material

Shape : Customized

Contact Now

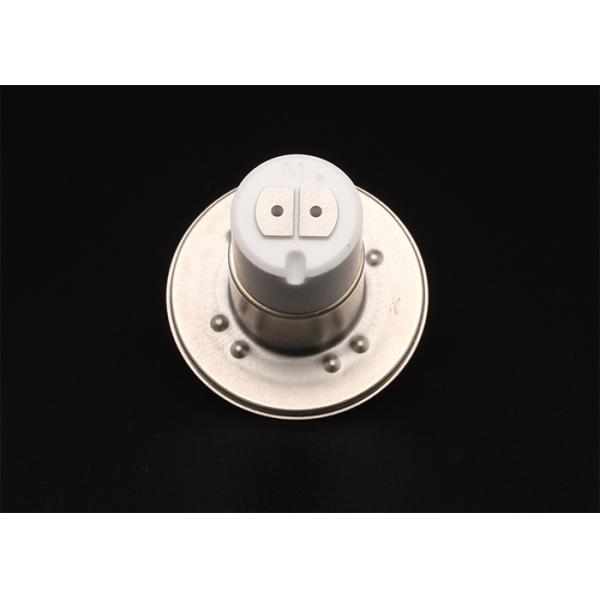

Alumina Magnetron Assembly

1. Description:

Alumina Magnetron Assembly is applying to in magnetron parts.So it called magnetron ceramics.The magnetron ceramic assembly is made of high purity complex alumina and nano metallization. It is suitable for brazing of different materials such as copper, aluminum, kovar and so on.

2. Key Words:

The nickel layer is dense, continuous, flat and weldable,Ceramics are with high flexural strength, high tensile strength and good air tightness,95% alumina ceramic components,magnetron for microwave oven.

3. Parameters list :

Product Parameters
Physical Property	Material	95% Alumina
	Production Process	Dry Pressing
	Product Dimension	Per customers' drawing
	Density (g/cm³)	3.70-3.75g/cm³
	Water Absorption	0%
Mechanical Performance	Flexural Strength (Mpa)	310Mpa
	Modulus of Elasticity (Gpa)	310Gpa
	Hardness (Gpa)	12.9Gpa
	Poisson Ratio	0.23
Thermal Character	Linear Thermal Expansion Coefficient	7.2
Thermal Character	Heat Conductivity (W/mk)	23
Electrical Property	Dielectric Constant	9.2
	Dielectric Loss Tangent (x10^-4)	8
	Insulation Strength (x10⁶V/M)	15
